Audio Player AP420
Description
- Embedded CMS
- Audio streaming with failover playbacks

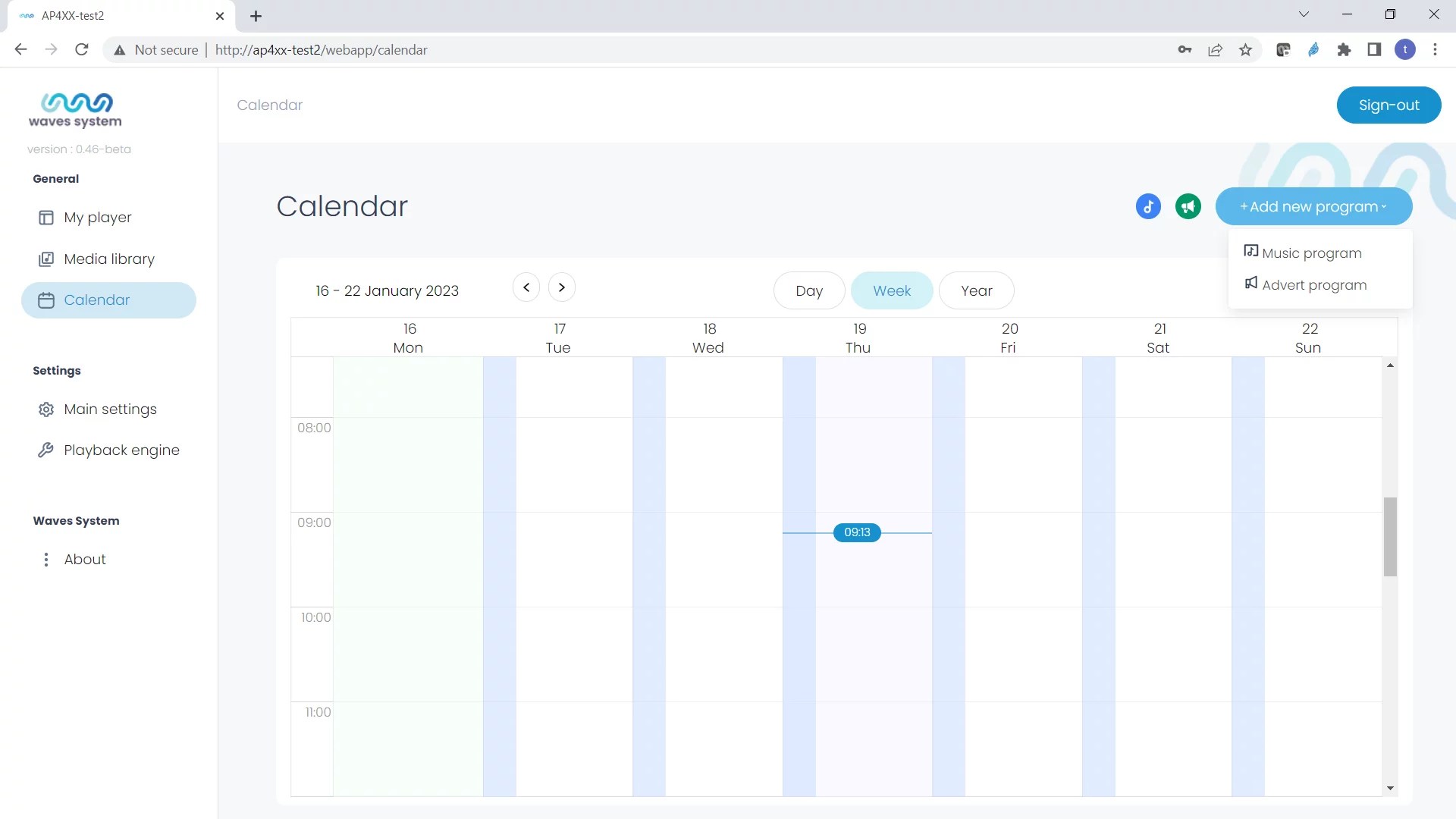

- Intuitive calendar for daily use
- 2 layer audio mixing
- Pro audio connectors
- Combine with voice alarms systems
- Works offline with precise RTC
- Store and forward capabilities
- Rackable
Endless audio streaming possibilities
Schedule and broadcast any audio streams: your webradio / local content / NAS.
24/7 secured broadcast with our Continuum proven technology.
Overlap your commercial messages. Crossfade all your transitions.

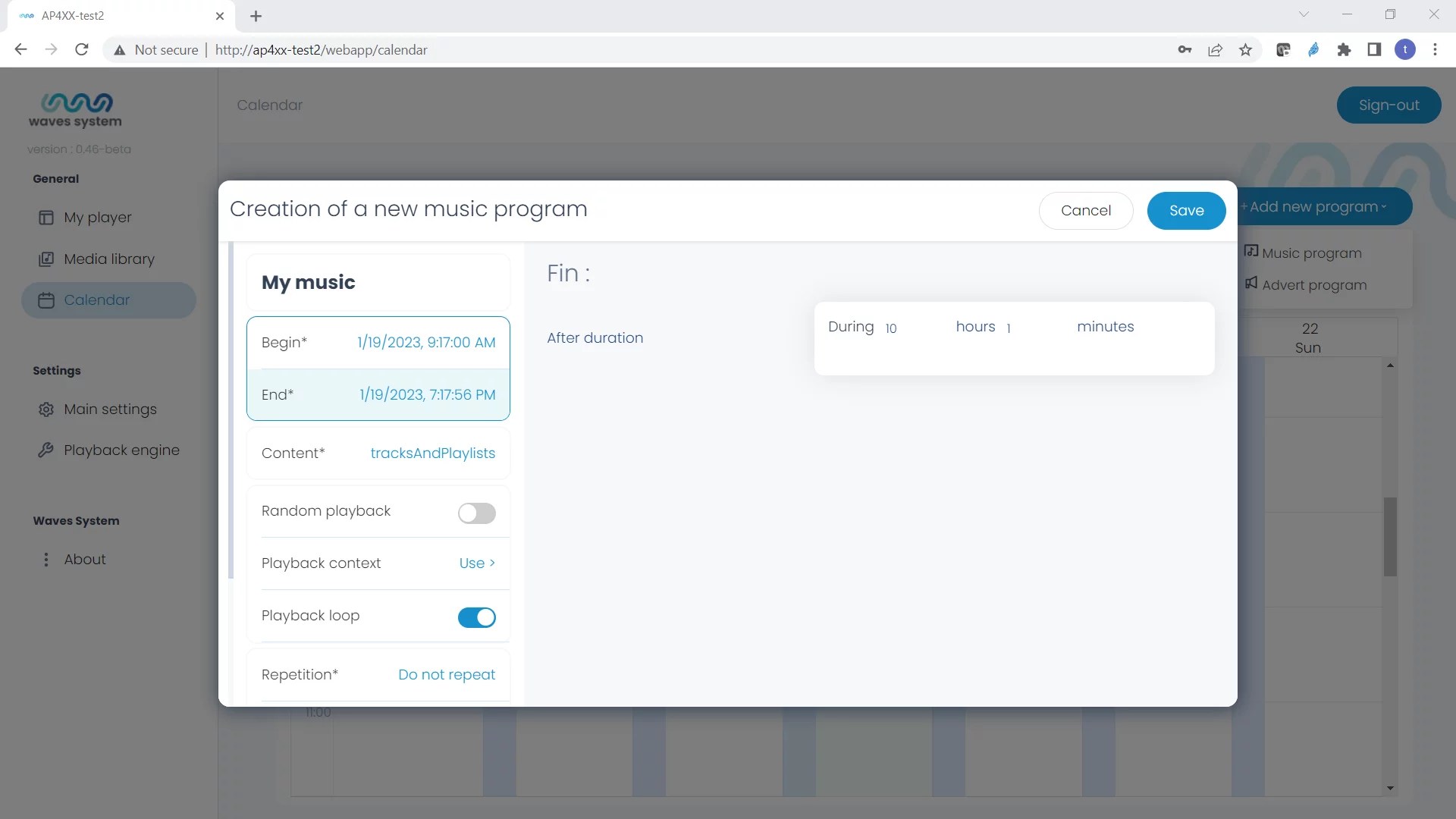

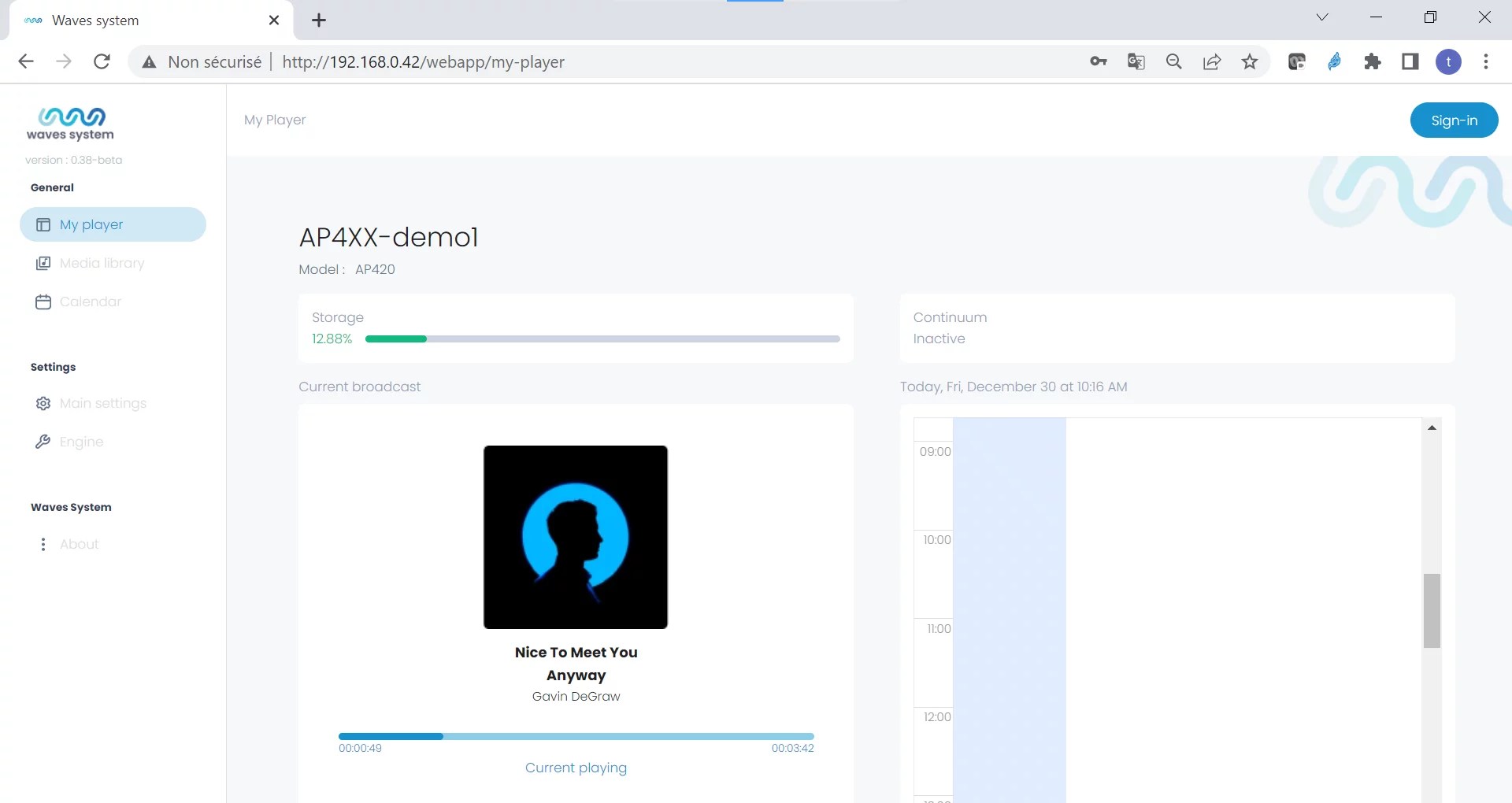

Manage your content with the web administration
Manage your broadcast with an easy to use embedded CMS especially designed for an intuitive experience.
Manage your inventory from the web with Wavespark
Supervise your fleet at a glance.
Broadcast your favourite audio playlists in all your stores.
Manage your digital content and schedule it.
Adapt instantaneously your communication from anywhere and at anytime.
Succeed in all use cases
Integrate with system security and existing PA.
Automate audio broadcast.
Insert your audio content locally.
Get access and control easily your player from your mobile.
Pro Audio quality
Uncompromising professional audio DAC 24bits/96 kHz.
Audio processing capabilities.
Use Cases :
- Reliable audio solution for international retail chain to broadcast background music, messages, advertising.
- State of art and complete audio source for all public address contracts.
- Robust priority messaging system for education, medical, warehouse and institutions.
- Unlimited and clever programmable scenarios and Ux for PA integration.
Specifications :
INTERFACING AND CONNECTIVITY
- Standby / Power multi purpose switch
- Status LEDs (Network, Activity)
- MicroSD card slot
- Unbalanced line-level stereo audio output on standard RCA connectors (configurable level -10 dBv to +4 dBu)
- 10/100 Mb Ethernet on RJ45 connector
- 3 USB Host 2.0 High Speed (480 Mb/s), type-A receptacle
- 1 input contact on 3.81 mm pluggable terminal block
- 2 MOSFET relays (normally open – 2A per output, max 24 V) on 3.81 mm pluggable terminal block
AUDIO
- High quality DAC – SNR>=96 dBa
- Sample rate: up to 96kHz
- Bit depth: 16/24-bit
- Supported audio file formats: MP3, AAC, ALAC, FLAC, WAV, AIFF, Vorbis
- Support audio stream type: Icecast, shoutcast
- Supported Playlist formats: M3U, PLS, JSPF
- Audio processing: equalization, dynamic compression, limiter, downmix stereo to mono
- Audio source layering and Priority management
- Fading and Crossfading
- Continuum feature: endless 24/7 secured broadcast
STORAGE DEVICE
- USB flash drives and micro SDSC/SDHC/SDXC cards
- File systems supported: FAT32 / exFAT / NTFS / ext3/4
- Plug’n play
NETWORK
- Embedded remote administration:
- Configure, control the player and content update
- Serve custom HTML5 / JavaScript pages
- Control the player through a REST API
- Embedded TCP/IP / UDP server for player control
- Embedded NTP client to synchronize the clock
- IPv4 and IPv6
- IPv4: static or DHCP address
- Embedded FTP server
- Supported secure protocols: HTTPS, SSL, SFTP, FTPS…
- Supported file server protocols: SMB, NFS…
WAVESPARK
- Multi-device / multi-account supervision
- Configure, control the player and content update
- Media library management
- Playlists creation
- Scheduling
MISC.
- DC Power supply 9V to 24V – Plug Ø 2.1 mm / 5.5 mm
- Precise built-in clock
- PPMS compliant
- Robust against power cuts
- 19-inch / 1U rackable
- Width: 192 mm
- Height: 43 mm – 1U
- CE, FCC
