Contactless infrared button

Out of stock

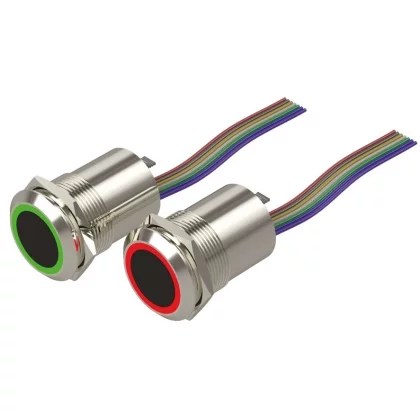

Contactless infrared button


Looking for a contactless button ? Get your hand close to the infrared push button to playback your media !

With an adjustable length of detection from 5 to 20cm, BP22IR is ideal for contactless interactivities in museums. Contactless technology of the infrared push button BP22IR brings additional value in public areas where hygiene is important.

This infrared push button offers a great flexibility of use because several choices are possible according to the needs:

  • The bicolor LEDs, green and red, can be controlled by the infrared button in autonomous mode or driven for example by an ID-AL player or a PLC.
  • The installer can program the integrated time delay from 0.5 to 20 seconds, or choose the ON / OFF bistable mode.

The supply voltage is 12 / 24V DC and the C / NO / NC changeover contact has a interrupting capacity of 30V DC – 1 A.


    • Contactless trigger of files on media players
    • Contactless push button for P.O.S displays


Detection Technology

  • Sensor type: touchless infrared switch
  • Detection range: from 5 cm to 20 cm
  • Output type : changeover contact NO/NC
  • Switching modes of the output:
    • Monostable with timer delay – from 0.5 s to 20 s
    • Bistable (ON/OFF)
  • Ingress protection code: IP20
  • Material of the button’s body: stainless steel

Interface and Connectivity

  • Bicolor status LED (red and green)
  • Selection jumper for the control mode of the LED: standalone or external control mode
  • Setting potentiometer for the timer and the switching mode of the output
  • Setting potentiometer for the switching distance
  • 20 cm ribbon cable for the connection with 7 conductors (cross-section: AWG 28) with stripped ends:
    • Red: 12-24 V DC
    • Black: 0 V DC
    • Yellow: green LED
    • White: red LED
    • Green: dry contact – NO
    • Blue: dry contact – COM
    • Purple: dry contact – NC
  • Interrupting capacity of the changeover contact (NO/NC): 30 V / 1 A

Power Supply

  • Power supply input:
    • Voltage: 12-24 V DC ± 10%

Current Consumption

  • Maximum DC current consumption: 45 mA

Thermal Information

  • Operating ambient temperature: from -10 °C to +55 °C
  • Storage temperature: from -10 °C to +55 °C


  • Diameter of the case head: Ø 25 mm
  • Depth of the case with the configuration jumper: 39.1 mm
  • Depth of the case alone: 32.5 mm
  • Length of the thread: 13.5 mm
  • Depth of the case head: 2.5 mm
  • Recommended flush-mounting depth: 50 mm
  • Thread of the insert: M22
  • Drilling diameter: Ø 22 mm


  • 25 g (with its cable)
