Medialon Show- Master Pro V2

$14,429.00

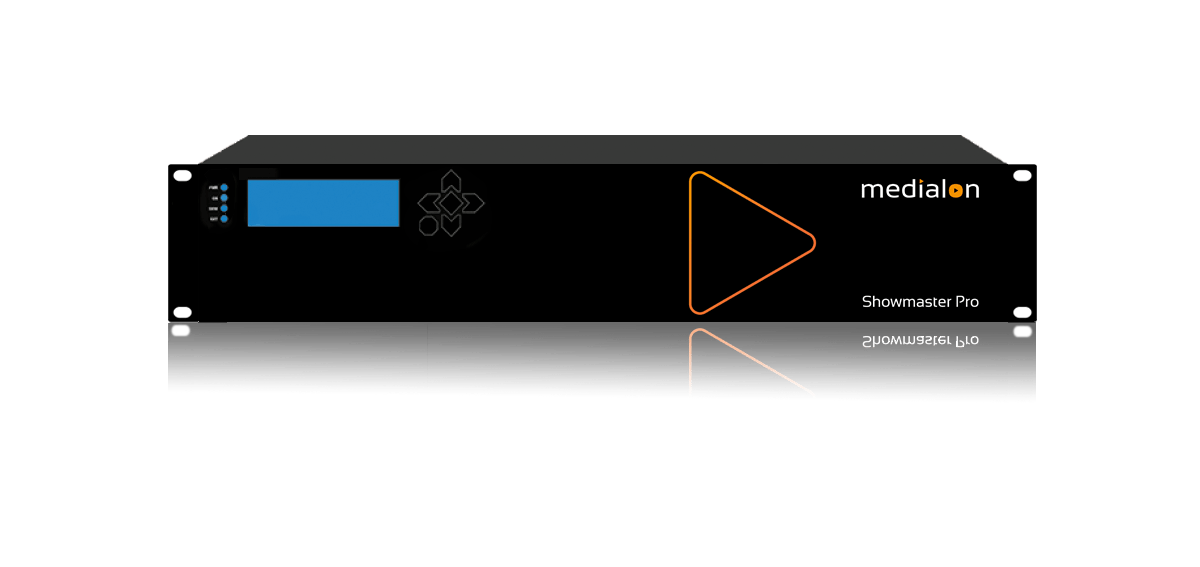

MEDIALON SHOWMASTER PRO

Showmaster Pro is an all in one embedded Show Controller fitted with all necessary show protocol interfaces.
It controls and synchronizes dimmers, lighting desks, video projectors, video servers, sound processors, etc.

Description

MEDIALON SHOWMASTER PRO

Showmaster Pro is an all in one embedded Show Controller fitted with all necessary show protocol interfaces.
It controls and synchronizes dimmers, lighting desks, video projectors, video servers, sound processors, etc.



Showmaster Pro also provides digital I/O and balanced Time Code input/output with video reference.

Its free editing software, Showmaster Editor, embeds most of the features of our award winning technology such as devices synchronization and logical programming as well as real time testing.

It supports multiple timelines, third party interfaces, unlimited touch panels connections and signal recording.

> Discover Medialon Control System’s Programming Environment

Applications


Showmaster Pro is designed for medium to large Show Control application in Museums, Showrooms, Stores and Restaurants or attractions, or when large amount of controlled devices requires additional interfaces.

It can also be used as sub system in larger shows or attractions.

Features


8x Serial ports
16x Digital In & 16x Digital Out
1x MIDI In/Out
2x DMX In/Out
Balanced Time Code In/Out, Video Reference
2x Ethernet ports
Medialon Extension supported (ioBox)
Third Party Extension supported
SSD drive
Drag & drop programming
Multiple Timeline Programming
Sync Accuracy 100th per Sec
Device Position Tracking
DMX, Serial & MIDI Recording
Logical Programming
Real time testing
Alarm via Email

Specifications

Dimensions

Rack: 476 (W) x 89 (H) x 260 (D) mm (18.75” x 3.5” x 10.25”), Stand-alone 441 (W) x 89 (H) 260 (D) mm (17.38″ x 3.5” x 10.25″), Packing: NC
Rack size (2U)
Weight

Rack: 23lbs / 10kg
Packaging: 28,6lbs / 13kg
Power
Auto-Ranging 100-240 VAC / 50-60Hz 250 Watts (Actual power requirement is usage dependent)
Enclosure
Metal with satin black finish
Certifications
FCC, CE, EN60950-1 FCC Class A – EN55022
Front Panel


1x LCD Display 4×20 Characters
6x Power / Menu Navigation Buttons
4x Status LEDs
Rear Panel




●●●



2x USB 2.0 Ports
1x IEC Power Connector
2x 10/100/1000 Base-T Ethernet Ports
8x RS-232 DB9 Male Serial Ports
1x DB-37 Male (Digital Inputs, optically-isolated and accept 3-31 Volts DC or AC RMS (40Hz-10kHz))
1x DB-37 Female (Relay Outputs, SPST form C electro-mechanical normally open relays. Rated Load: 0.5A @ 125VAC (62.5 VA max.) 1A @ 24VDC (30 W max.). Maximum switching voltage: 125VAC, 60 VDC / Current 1A). When using Breakout boxes (Part#SWM_BO), the maximum electrical specifications are 150ma / 12VDC per relay with a maximum of 2A for the whole 16 relays.
2x DMX Input or Output (5 Pin Female XLR)
1x Balanced Timecode Input (3 Pin Female XLR)
1x Balanced Timecode Output (3 Pin Male XLR)
1x Video Reference Input (BNC)
1x MIDI Input DIN5 Female
1x MIDI Output DIN5 Female
Hard Power Switch
System


512 MB DDR2, SDRAM, 533 MHz
1x 8 GB SSD SATA Hard Drive
Intel Celeron M 430, 1,73 GHz Processor
Environmental



Operating Temperature: 0°C/32°F to 50°C/122°F
Operating Humidity: 10 to 80% at 25°C non-condensing
Acoustic Noise: NC
Heat Dissipation (Typical): NC BTU/hr
Reliability
NA
Included Accessories



1x IEC Power Cord
1x Showmaster Editor Installation CD
1x Showmaster Manual
2x Rack Mounting Brackets
Recommended Accessories
Breakout Terminal Wiring Board and DB-37 Cable (Part# SWM_BO)
Software Specifications




●●


●●





Drag & Drop Programming
Multitasking: several tasks can run simultaneously in synchronization or separately
Unlimited number of TimeLine for Synchronisation
1/100th Sec Sync Accuracy
Time Code: 24, 25, 30, 30DP, and 100 fps base time supported. User defined or automatic type selected
Device Positracking (Sync)
Recording (DMX, MIDI, Serial)
Logical Programming Operators: +, -, *, /, %, ^, =, ==, !=, >, <, >=, <=,|, &,#, ()
Logical Programming Functions: Hours, Minutes, Seconds, Frames, Day, Day Of The Week As Name, Day Of The Week As Number, Month, Year, Lower Case, Upper Case, Length, Char At, Get Field Of Enum, Get Index Of Enum, Random, Sqrt, Round, Ceil, Floor, Abs, Max, Min, Sin, Asin, Tan, Atan, Cos, Acos, Ln, Log, Exp
Variables Type: Integer, String, Time, Date, Enum. Unlimited number of variables
Real Time program testing
Drivers Editor
OpenCap Protocol
Log Files
Unlimited number of Panel (or Panel server)
Alarm via Email
Extensions Supported




Medialon ioBox over IP (Part# IOBOX)
DMX over IP: Artnet
Serial Over IP: Comtrol Device Master serie
Serial Over IP: Sealevel SeaLINK serie
IO over IP: Opto22 Snap IO Ethernet serie
IO over IP: Advantech Adam 6000 serie
IO / Serial / IR over IP: Global Cache GC serie
