MEDIALON - MIPHD Media Player

MEDIALON MIPHD - MEDIA PLAYER

MIP HD is a compact player able to playback both multimedia content such as Flash, Html, Jpeg and even URLs as well as 1080p HD video. Interactive media such as Flash keep their interactivity if needed.

MIPHD's built-in web server provides web user interface to remotely upload media, to build up playlists and to schedule and retrieve log files.
Its Sync Video mode allows synchronization of unlimited number of HD video players via the network connection.

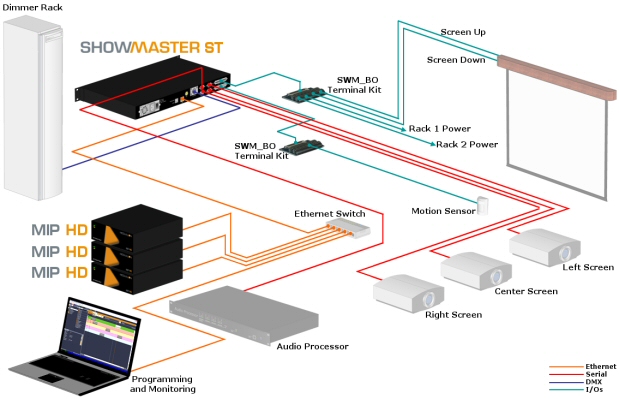

It can either operate autonomously or be slaved of a Medialon Control System making it an ideal solution for Museum as well as Digital signage applications

APPLICATIONS

MIP HD is designed for multimedia playback applications in museums, exhibitions, rides, interactive kiosks, stores, events, congress centers and more.

FEATURES

●
●
●
●

Autonomous
Robust and small form factor
Plug and Play
Easy to use

●
●
●
●

Low consumption
Compatible with most common media
Frame sync of video
HD compatible

SPECIFICATIONS

Dimensions
	● ●	Product: 219 (W) x 73 (H) x 260 (D) [67 (H) mm without feet]; 8 5/8" (W) x 2 7/8" (H) x 10 1/4" (D) [2 5/8" (H) without feet], Packaging: NC Rack size: 1 1/2U (H) x 1/2 19" (W)

Weight
	●	Rack: 5.4 lbs/2.8 Kg
	●	Packaging: 8 lbs/4 Kg

Power
	●	AC/DC adapter: Model ADP-90CD DB ; Input: 100-240 VAC 1.5A 50-60Hz ; Output: 19VDC 4.74A (90W) ; Input Connector: Male Inlet IEC C6 “Mickey Mouse” type grounded ; Output Connector: Male Barrel 5.5mm x 2.5mm ; Includes US Power Cord: NEMA 5-15 Male to IEC C5 “ Mickey Mouse” Female

Enclosure
	●	Metal with satin black finish

Certifications
	●	FCC, CE, EN60950-1 FCC Class A - EN55022

Front Panel
	●	1x Power LED
	●	1x Operating LED

Rear Panel
	● ● ● ● ● ● ● ● ● ●	1x 10/100/1000 Base-T Ethernet Port 1x RS-232 DB9 Male Serial Port 2x USB 2.0 Ports 1x HDMI 1x DVI 1x VGA 1x Optical Audio 1x Digital RCA audio SPDIF 2x Analog Audio Out 1x Analog Audio In

System
	● ● ● ●	XPE 1GB DDR2, SDRAM, 667 MHz 1x 16 GB SSD SATA Hard Drive (MIP_HD), also available with 1x 64GB SSD (MIP_HD_64) or 1x 128GB SSD SATA Hard Drive (MIP_HD_128) Atom N330, 1,6Ghz Processor

Media Supported
	● ● ● ●	Video: H264/AVC up to High Profile@Level 4.0 (1080p/30fps), up to 20Mb/s ; MPEG-2 SD & HD up to High Profile@High Level (1080p/30fps) up to 40 Mb/s ; WMP up to 720p/30fps up to 10 Mb/s Audio: Wave / MP3 / AAC / MIDI Still Images: Bmp / Jpeg / Gif / Tiff Composite: HTML / Flash (FLV not accepted)

Environmental
	● ● ● ●	Operating Temperature: 0°C/32°F to 50°C/122°F Operating Humidity: 10 to 80% at 25°C non-condensing Acoustic Noise: NC Heat Dissipation (Typical): NC BTU/hr

Reliability
		NA

Included Accessories
	●	1x External Power Adapter

Recommended Accessories
		NA

Software Specifications
	● ● ● ● ●	WEB Base interface Multimedia playback Media scheduling & Calendar feature Video Sync MXM for Medialon Manager

Extensions Supported
	●	For external trigger: Adlink Nudam 6530 and Adlink Nudam 6060
