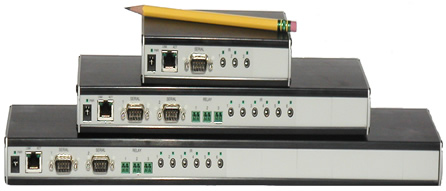

Global Cache GC100 - 6, 12, 18

Global Caché’s GC-100 family of Network Adapters connects almost any piece of electronic equipment to a network so that it can be accessed, controlled, and maintained from anywhere over a network or the Internet. Our Network Adapters employ a unique and transparent architecture that is engineered to seamlessly integrate with all types of control, automation, and monitoring environments. Compact and economical, they provide a quick, simple and cost-effective way to bring the advantages of device networking to homes, educational institutions, businesses, and houses of worship.





GC-100-06
• Power input
• Network connection
• Serial port
• Three independent IR outputs or sensor inputs
• Dimensions: 6.0” L x 3.0” D x 1.3” H

GC-100-12
• Power input
• Network connection
• Two serial ports
• Three relay connections
• Six independent IR outputs or sensor inputs
• Dimensions: 12.0” L x 3.0” D x 1.3” H

GC-100-18
• Same configuration as GC-100-12
• Dimensions: 17.5.0” L x 3.0” D x 1.3” H
GC-100-18R
• Same configuration as GC-100-18 with rack mount kit installed
• 1U rack height

Power Input
•9 to 18V DC@300mA (wall power
adapter included) •International 220V available
LED indicators
•Power
•Network activity
•Link status
•IR transmission
•Sensor input state
•GC-100 visual ID
Setup
•Integrated web server for easy
configuration
•Configure through TCP/IP set up
commands
Discovery & Setup Utility
•Included Windows-based software
simplifies GC-100 network discovery
of units and setup
Network Interface
•Connector: RJ45
•Protocol: 10 Base-T Ethernet
•Standards: TCP, DHCP, HTTP
Serial Interface
•Connector: Male DB9
•Data Rates: 1200 baud to 57.6
Kbaud
•Parity: odd, even, none
•Flow control: bi-directional hardware
RTS/CTS
•IR input: utilizing a GC-IRE and GCRG1,
IR commands are received via
RS232 port.
IR & Sensor Interface
•Connector: 3.5mm stereo jack
•Selectable IR outputs or sensor
inputs per port
•IR input: IR commands received
via RS232 port utilizing GC-IRE and
GC-RG1
•IR emitter supplied for each IR port
Relay Interface
•Connector: screw terminal plug,
24V AC/DC@.5A, N.O. contact with
transient voltage suppression
•Capability: contact closures
Certifications
•FCC (Part 15, Class B), C-tick, CE
•RoHs compliant
Software
•Product
GC-IRL Learner Utility
•Development and Testing
GC-100 Test Utility
GC-CCF Conversion Utility
GC-Scan Test Utililty
IR Test Utility
Warrany
•One year limited warranty
